Aviat Husky

Whether you use your Husky for work or play Wipaire can help you get the best performance, and the most enjoyment, during your flight time.

If you’ve been dreaming of flying your Husky right to the lake then take a look at the Wipline 2100 Float. Amphibious or Straight models are available for the A1. Wipline Floats are known for both performance and durability and with almost 50 years in the business you can buy with confidence knowing that we’ll still be here to support our products for years to come.

Maybe your Husky has seen better days. With a full service Refinishing and Interiors department we can get her looking good as new. While she’s here our Maintenance team will get her running at the top of her game and with an Avionics upgrade you’ll be enjoying your air time even more!

Wipaire’s aircraft services team prides itself in providing world-class services with the most comprehensive facility in the Midwest. Having full-service maintenance,painting, interior and avionics facilities under one roof is key to assuring minimal ground time for your aircraft and simplifying the process. We also offer a ferry service if it is not convenient for you to bring the aircraft to our facility. Our reputation for quality and convenience is widely known throughout the industry.

Wipaire can get your Husky running, and looking, better than ever. Take a few minutes to browse the tabs on this page to learn more. If you already have an idea what you need then please contact us to request more information.

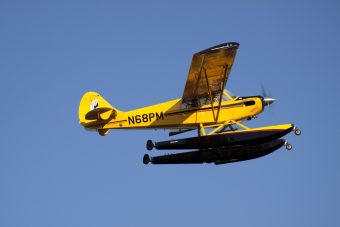

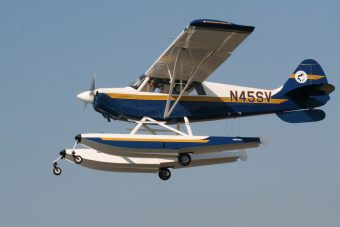

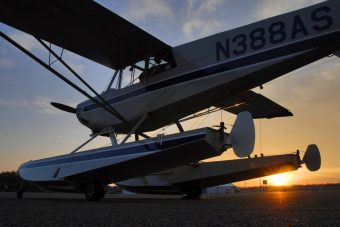

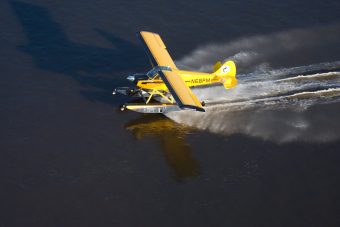

Wipline 2100 Floats for the Husky


Whether your dream is to tour the majestic mountains of the Idaho back-country or dance above the tree tops on the vast northern Canadian Shield, Wipaire can outfit your Aviat Husky with the versatility you need. A set of Wipline 2100 floats provide simplicity, solid handling characteristics and performance to your aircraft, giving you the freedom to explore.

Features and Benefits

  • Amphibious or seaplane floats available
  • High bow buoyancy and a higher deadrise angle on our forward bottoms for improved handling in wind and choppy water
  • Best nose and main gear on the market, proven in the field and imitated by competitors
  • Non-skid coated, flat top decks for safety
  • Enhanced safety with amphibious gear advisory system and gear position indicator on the float deck of amphibious floats
  • Two large float hatches for gear, measuring 20 3/8″ by 10 1/2″ with 50 pounds carrying capacity each
  • Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly

Wipaire designed finlets are available for all Husky models equipped with Wipline 2100 floats. Compared to the old style ventral fin, the finlet installation reduces the potential for aircraft damage while docking. They also greatly improve cross-wind operations by being shadowed by the tail. The finlets eliminate the need for water rudder stops when in the retracted position, significantly reducing pedal forces during land and water operations.

Specifications

Float Dimensions
Length – Seaplane 17’7″ (5.36 m)
Length – Amphibian 17’11” (5.46 m)
Height – Hull 1’11” (0.58 m)
Width – Hull 2’5″ (0.74 m)
Float Locker Capacity (each) 50 lbs (22.7 kg)
Displacement in Fresh Water
Amphibious Floats 2,185 lbs (991 kg)
Seaplane Floats 2,323 lbs (1,054 kg)

Maximum Flotation
Amphibious Floats 2,428 lbs (1,101 kg)1
Seaplane Floats 2,581 lbs (1,171 kg)1
1) Per FAR 23.751with 80% reserve buoyancy (2 floats)



Weight
Amphibian System Total Weight 432 lbs (196 kg)
Amphibian Exchange Weight 349 lbs (158 kg)2
Seaplane System Total Weight 285 lbs (129 kg)
Seaplane Exchange Weight 202 lbs (92 kg)2
Aircraft Gross Weight 2,250 lbs (1,020 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.
Performance on Amphibious Floats
Engine Lycoming O-360 (180 hp)
Take off run (land) 720 ft (219 m)
Take off over 50 ft obstacle (land) 1,429 ft (439 m)
Take off run (water) 913 ft (278 m)
Take off over 50 ft obstacle (water) 1,521 ft (464 m)
Rate of climb (per/min) 953 ft (290 m)

Pricing

Aircraft Floats & Rigging Installation Total
Amphibious Seaplane    Amphibious Seaplane Amphibious Seaplane
Aviat Husky $55,200 $35,000 $9,200 $5,200 $64,400 $40,200
American Champion Scout 8GCBC $53,700 $33,200 $8,800 $4,800 $62,500 $38,000
Cessna 170 A B $53,700 $33,100 $9,000 $4,900 $62,700 $37,000
Cessna 172 Series / 175 $54,700 $31,800 $9,000 $4,900 $63,700 $36,700
Glastar GS-1 $54,700 $31,800 $9,000 $4,900 $63,700 $36,700
Piper PA-12 $53,400 $33,200 $8,800 $4,900 $62,200 $38,100
Piper PA-18 $53,400 $33,200 $9,000 $5,000 $62,400 $38,200
CubCrafters 2300 lb Top Cub $54,900 $34,700 $9,300 $4,700 $64,200 $39,400
View Pricing Notes

  1. All amphibious floats include landing gear advisory system.
  2. Float rigging and FAA STC paperwork included.
  3. Call for discount details if the aircraft has seaplane modifications previously installed.
  4. Product installation assumes standard factory aircraft. Non-standard aircraft may be subject to additional installation charges
  5. Float paint option:
    • Overall base color to match aircraft is included.
    • Two trim colors to match scheme of aircraft is included.
    • Additional trim colors quoted per color and paint scheme.
    • Complex paint scheme, inboard and bottom painting of floats, please call for pricing.
    • Paint information and paint scheme will be requested at the time of deposit.  If paint colors are not provided, we will match colors to the best of our ability, but will not guarantee 100% match or a definite delivery date.
    • Customer choice of polyurethane or silver-gray submersion paint is included.  There is no paint warranty for polyurethane floats stored in water for extended periods.

Cessna 170,172 & 175

  • Install prices assume a factory float kit, ventral fin, and appropriate seaplane propeller are provided. A field installed factory float kit and seaplane propeller is additional and will be quoted separately.

Top Cub

  • Top Cub installation price includes cost of CubCrafters ventral fin kit.

Aviat Husky A-1B and A1-C

  • For eligible aircraft, price includes Service Letter 131 for 2,250 lb gross weight increase. Consult your sales representative for more information.

Prices in U.S. dollars, FOB St. Paul, Minnesota, USA, and are subject to change without notice. Prices do not include taxes, duties or tariffs. They also may vary if custom work is required or requested.

Effective for floats quoted after February 1, 2017.

AirGlide C2200 Skis for the Husky



Don’t let old man winter freeze your flight plans. The Aviat Husky A1-A and B can be equipped with skis to keep you going all year.

Our non-penetration skis offer peak performance on either snow or the runway. Compromised penetration skis result in extra drag from a wheel during a snow landing or take-off and potential damage to the ski on dry ground. Our ski operates as either a full ski OR a wheel at your discretion.

Now you don’t have to sacrifice performance for convenience!

Specifications for C2200 Skis

Dimensions: 76 x 18
Weight: 84 lbs*
Load Limit: 5500 lbs
Price

$22,940** (Rigging and electro-hydraulic system included)

*Weight is for both skis. The Electro-Hydraulic Power Pack adds an additional 17 lbs.

** If you already have Wipline 2100, 2350, 3000, or 3450
amphibious floats installed on the aircraft you will not have to purchase the hydraulic system. Call your salesman for allowance.

NOTE: Replacement STC/Prints $350 Per Set

CT3000 Tail Ski

Ski Aircraft Price
CT3000 Tail Ski

Tail Ski for all aircraft models listed above and Piper PA-12, PA-19, PA-20; Cessna 120, 140, 140A; Univair 108, 108-1, 108-2, 108-3, 108-5 on airplanes equipped with Scott Model 3200 & 3400 Tail Wheels

$1,630

Modifications for the Husky

The Aviat Husky is already a great aircraft but when you need a little more out of it we’re here to help.

2250 Lb GWI for the Aviat Husky

Wipaire has received FAA approval for a gross weight increase on the Aviat Husky. Wipaire’s Supplemental Type Certificate increases the Husky’s gross weight on Wipline 2100 floats to 2,250 pounds from 2,200 pounds. This adds 50 pounds to the aircraft’s useful load, further increasing the Husky’s utility. Wipaire’s STC is available as a takeoff-only gross weight increase or a takeoff and landing increase which allows the aircraft to be landed at the 2,250-pound gross weight. This modification is available on the A-1B, A-1C-180, and A-1C-200.

Modification Pricing

Modification Price
Gross Weight Increase to 2,250 Take Off / 2,200 Landing
Service letter 131
Wipline 2100 amphibious or seaplane floats required.
$1,260
Gross Weight Increase to 2,250 Take Off / 2,250 Landing
Service letter 131
Wipline 2100 amphibious or seaplane floats required.
$1,840

Avionics

Image of a Pilot in a Scout

Wipaire’s Avionics division offers a full array of navigation, weather detection and communication technology. Wipaire offers avionics services at both our South St. Paul, MN headquarters and our Leesburg, Florida location. We are a certified Garmin dealer, as well as most other major brands. We have the experience and resources to transform your cockpit to glass. We can also repair any problems with your existing avionics system.

The Wipaire team will work with you to create the features you need to ensure a safe, smooth, enjoyable ride.

  • Sales & installation of new custom avionics suites.
  • Service for existing avionics.




Click Here to Learn More About Our Avionics Services

Interiors

Navion Interior Completed by Wipaire

If your interior is starting to show its age then why not upgrade!

Wipaire’s aircraft interiors facility is able to do anything from small repairs to complete interior renovations, we’ll work with you to formulate the interior that fits your needs.

  • Committed to quality
  • Professional grade craftsmanship
  • Save time! Interior installed concurrent with maintenance
  • Custom design service

Click Here to Learn More About Our Interiors Services

Maintenance

Maintenance Services by Wipaire

Wipaire has been providing aircraft maintenance and float installations for over 25 years. Wipaire is an FAA certified repair station.

We can complete any of your restoration or upgrade needs.  From annual inspections to wing tip extensions to vortex generators to engine upgrades, major to minor, we are here to help.

Additional Wipaire maintenance services:

  • On or off site borescope inspections, image capture capability for download if requested.
  • Full lead acid battery service.
  • Prop balancing service.
  • Weight and balance service, float plane and land plane.
  • Float removal, storage, inspection and repair.
  • Annual service
  • Pre buy inspections for buyer or seller.

Visit our maintenance page to learn more about our full range of services.

Refinishing

Paint refinishing by Wipaire

If you can imagine it we can make it real. Paint is custom designed and matched to existing elements and can be as simple or exotic as you desire. Airbrushing art and custom decals are part of our everyday processes. Experience and intricate attention to detail are our foundation for creating the highest quality product.

  • We specialize in custom requests
  • Meticulous attention to detail
  • Committed to quality
  • Custom design service
  • Craftsmanship with extensive training

Click Here to Learn More About Our Refinishing Services
