Cessna 185 Skywagon

Whether your dream is to fly to the remote glaciers of Alaska’s Denali National Park or hop between white sand beaches of the islands, Wipaire can outfit your Cessna 185 Skywagon with the versatility and performance you need. Wipaire manufactures and installs a full line of Wipline floats, skis and other performance enhancing modifications designed and constructed with special attention to every detail.

If you’ve been dreaming of flying your Skywagon right to the lake then take a look at Wipline 3000 Floats. Amphibious or Straight models are available for the Cessna 185. Wipline Floats are known for both performance and durability and with over 55 years in the business you can buy with confidence knowing that we’ll still be here to support our products for years to come.

Maybe your Cessna 185 has seen better days. With a full service Refinishing and Interiors department we can get her looking good as new. While she’s here our Maintenance team will get her running at the top of her game and with an Avionics upgrade you’ll be enjoying your air time even more!

Wipaire’s aircraft services team prides itself in providing world-class services with the most comprehensive facility in the Midwest. Having full-service maintenance, painting, interior and avionics facilities under one roof is key to assuring minimal ground time for your aircraft and simplifying the process. We also offer a ferry service if it is not convenient for you to bring the aircraft to our facility. Our reputation for quality and convenience is widely known throughout the industry.

Wipaire can get your Skywagon running, and looking, better than ever. Take a few minutes to browse this page to learn more. If you already have an idea what you need then please contact us to request more information.

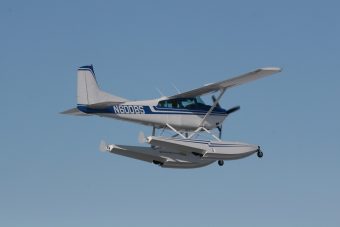

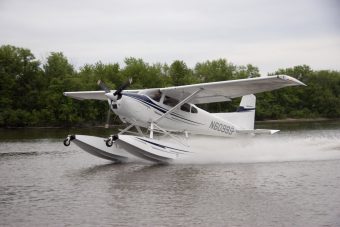

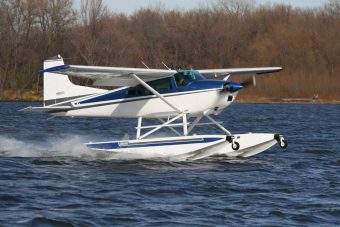

Wipline 3000 Floats for the 185

Whether your dream is to fly to the remote glaciers of Alaska’s Denali National Park or hop between white sand beaches of the islands, Wipaire can equip your Cessna 185 with the versatility you need. Wipline 3000 floats are engineered to offer rugged durability and outstanding performance, giving you the freedom to explore.

Features and Benefits

  • Amphibious or seaplane floats available
  • Modern hydrodynamic design with fluted bottom skins, sister keels and high bow buoyancy to get off the water quickly and perform in a wide range of conditions
  • Best nose and main gear on the market, proven in the field and imitated by competitors
  • Internal cables for water rudder controls
  • Non-skid coated, flat top decks for safety
  • Enhanced safety with amphibious gear advisory system and gear position indicator on the float deck of amphibious floats
  • Two large float hatches for gear, measuring 25 3/4″ x 12″ with 50 pounds carrying capacity each
  • Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly
  • Replaceable wear strips on mail keel for ease of maintenance

3000 Floats Specifications

Float Dimensions
Length – Seaplane 20’1″ (6.12 m)
Length – Amphibian 20’8″ (6.3 m)
Height – Hull 2’5″ (0.74 m)
Width – Hull 2’8″ (0.81 m)
Float Locker Capacity (each) 50 lbs (22.7 kg)
Displacement in Fresh Water
Amphibious Floats 3,125 lbs (1,417 kg)
Seaplane Floats 3,301 lbs (1,497 kg)

Maximum Flotation
Amphibious Floats 3,472 lbs (1,575 kg)1
Seaplane Floats 3,668 lbs (1,664 kg)1
1) Per FAR 23.751with 80% reserve buoyancy (2 floats)




Weight for 3000 Floats on a Cessna 185
Amphibian System Total Weight 632 lbs (287 kg)
Amphibian Exchange Weight 483 lbs (219 kg)2
Seaplane System Total Weight 432 lbs (198 kg)
Seaplane Exchange Weight 282 lbs (128 kg)2
Aircraft Gross Weight 3,350 lbs (1,519 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.
Cessna 185 Performance on Amphibious Floats
Engine Continental IO-520
Take off run (land) 760 ft (231 m)
Take off over 50 ft obstacle (land) 1,325 ft (404 m)
Take off run (water) 1,125 ft (343 m)
Take off over 50 ft obstacle (water) 1,710 ft (521 m)
Rate of climb (per/min) 950 ft (290 m)



Pricing

Aircraft Floats & Rigging Installation Total

Amphibious Seaplane    Amphibious Seaplane Amphibious Seaplane
Cessna 180 (through K model) $82,300 $44,600 $9,300 $6,100 $91,600 $50,700
Cessna A185E, F $82,300 $44,600 $9,300 $6,100 $91,600 $50,700
Cessna 182 P, Q, R, S, T $82,000 $44,550 $15,300 $12,100 $97,300 $56,650
Maule M6-235, MX7-235/260/420, MX7-235, MT7-235/260/420, M7-235/260/420 $81,000 $44,000 $9,300 $6,100 $90,300 $50,100
View Pricing Notes

  1. All amphibious floats include landing gear advisory system.
  2. Float rigging and FAA STC paperwork included for 4-point strut configuration. For 3-point configuration, contact your sales representative.
  3. Call for discount details if the aircraft has seaplane modifications previously installed.
  4. Product installation assumes standard factory aircraft. Non-standard aircraft may be subject to additional installation charges
  5. Float paint option:
    • Overall base color to match aircraft is included.
    • Two trim colors to match scheme of aircraft is included.
    • Additional trim colors quoted per color and paint scheme.
    • Complex paint scheme, inboard and bottom painting of floats, please call for pricing.
    • Paint information and paint scheme will be requested at the time of deposit.  If paint colors are not provided, we will match colors to the best of our ability, but will not guarantee 100% match or a definite delivery date.
    • Customer choice of polyurethane or silver-gray submersion paint is included.  There is no paint warranty for polyurethane floats stored in water for extended periods.

Cessna 180 and 185

  • Prices assume airframe is equipped with a factory installed float kit and appropriate seaplane propeller is provided.

Cessna 182

  • Float rigging and FAA STC paperwork included for 4-point strut configuration. For 3-point configuration, contact your sales representative.
  • Models 182 P, Q, R, S, and T include extensive airframe and firewall modifications including hoist rings, "V" brace, ventral fin, wide chord rudder, and extended tail stinger. Heavy-duty engine mount and Hartzell three-blade
    seaplane/landplane propeller are required (not included with floats and rigging).
  • For eligible models 182 P, Q, R, S, and T, 3,370 lb gross weight is included. 3,370 lb gross weight requires installation of AirPlains IO-550 engine conversion or Wipaire Boss 182 engine conversion.
  • Cessna model 182: Factory installed WX500 Antenna repositioning and skin mapping – $1,900.
  • Call for discount details if the aircraft has seaplane modifications previously installed.

Maule

  • Maule installation price includes ventral fin (Maule P/N 9014) and Wipline clamp-on rear fuselage fittings.
  • Call for discount details if the aircraft has seaplane modifications previously installed.

Prices in U.S. dollars, FOB St. Paul, Minnesota, USA, and are subject to change without notice. Prices do not include taxes, duties or tariffs. They also may vary if custom work is required or requested.

Effective for floats quoted after February 1, 2017.


AirGlide Skis for the Cessna 185

Cessna 185 on C3200 Airglide Skis

C3200 Skis: Models 185 – A185F

C3600 Skis: Models 185 – A185F

Don’t let old man winter freeze your flight plans. The Cessna 185 can be equipped with skis to keep you going all year.

Our non-penetration skis offer peak performance on either snow or the runway. Compromised penetration skis result in extra drag from a wheel during a snow landing or take-off and potential damage to the ski on dry ground. Our ski operates as either a full ski OR a wheel at your discretion.

Now you don’t have to sacrifice performance for convenience!

C3200 Skis Specifications & Pricing

Dimensions: 84.4 x 21.04
Weight: 122 lbs*
Load Limit: 6135
Price $28,980* (Rigging and electro-hydraulic system included)

*Weight is for two skis. The Electro-Hydraulic Power Pack adds an additional 17 lbs.

** If you already have Wipline 2100, 2350, 3000, or 3450 amphibious floats installed on the aircraft you will not have to purchase the hydraulic system. Call your salesman for allowance.

NOTE: Replacement STC/Prints $350 Per Set

C3600 Skis Specifications & Pricing

Dimensions: 84.4 x 21.04
Weight: 122 lbs*
Load Limit: 6135
Price $30,450* (Rigging and electro-hydraulic system included)

*Weight is for two skis. The Electro-Hydraulic Power Pack adds an additional 17 lbs.

** If you already have Wipline 2100, 2350, 3000, or 3450 amphibious floats installed on the aircraft you will not have to purchase the hydraulic system. Call your salesman for allowance.

NOTE: Replacement STC/Prints $350 Per Set

CT3000 Tail Ski Specifications & Pricing

Ski Aircraft Price
CT3000 Tail Ski

Tail Ski for all aircraft models listed above and Piper PA-12, PA-19, PA-20; Cessna 120, 140, 140A; Univair 108, 108-1, 108-2, 108-3, 108-5 on airplanes equipped with Scott Model 3200 & 3400 Tail Wheels

$1,630

Modifications for the Cessna 185

The Cessna 185 is already a great performance machine but when you need a little more we’re here to help. Wipline floats and AirGlide skis are some of our best know modifications but we also have performance modifications.

  • IO-550D Engine Upgrade

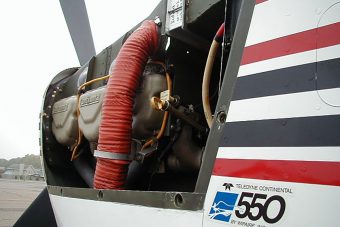

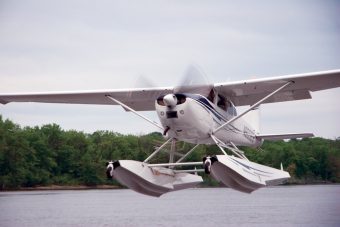

    Cessna 185 IO-550D Engine Upgrade

    More power? Greater performance? One of the most effective ways of enhancing the capability and performance of your C-185 is to add an IO-550 engine and Hartzell or McCauley “Power Prop”. Wipaire pioneered this modification, realizing its potential to really create a hot-rod of a seaplane. The Wipline IO-550 upgrade is rated at 300 Horsepower, like the standard 520, but is rated at a higher torque, giving you 8-10% better performance, an additional 150 to 175 points of thrust for seaplanes, and quieter ride. Unlike the 520, the IO-550 enables a maximum continuous cruising rate at 300 HP instead of just 285HP.

    Call us today to learn more about this exciting product that is sure to enhance your investment and your total flying experience.

    The IO-550D Engine Upgrade can give your 185 that extra get up and go that you’ve been wishing for.

    • 300 HP Max Continuous
    • 8-10% Torque increase over 520
    • 150 RPM less than 520 = Greater Longevity
    • 8-10% Increased Cruise Speed
    • 8-10% Shorter Take-Off

    185 IO-550 Engine Kit Includes:

    • Mount Isolators
    • Mount Bolts
    • Locking Tabs
    • Ground Straps
    • Barrel Nuts
    • Fluid Hose Kit
    • Bushings
    • Spacers
    • Placards
    • Man Pressure/Fuel Flow Gauge (Exchange)
    • Tachometer (Exchange)
    • Paperwork and STC

    NOTE: Three blade engine mount required for 185 part number 0751007-16 at an additional cost.

    More power? Greater performance? One of the most effective ways of enhancing the capability and performance of your C-185 is to add an IO-550 engine and Hartzell or McCauley "Power Prop".
    Read More
  • Hartzell Trailblazer Propeller Upgrade

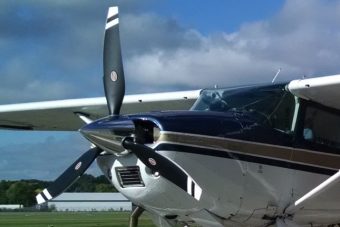

    Cessna 185 With a Trailblazer Prop

    The new carbon fiber composite Hartzell Trailblazer series 82″ propeller is available for Cessna 185 models with the IO-550-D engine installed via Wipaire STC SA1522GL or Texas Skyways STC SA09960SC in both landplane and seaplane configurations. The Trailblazer propeller offers the following features.

    • Durable, field-replaceable nickel cobalt leading edge
    • Nickel erosion screen for foreign object damage protection
    • Thinner blade with a wider chord for improved performance
    • Designed to be quieter than comparable propellers
    • Carbon fiber composition is 5-10x stronger than natural fiber propeller cores
    • 14.6 lbs lighter than the Hartzell metal 80″ prop (model: PHC-C3YF-1RF/F8468A-6R)
    • 3.1 lbs lighter than the McCauley 80″ prop (model: D3A34C401/90DFA-10)

    The new carbon fiber composite Hartzell Trailblazer series 82" propeller is available for Cessna 185 models with the IO-550-D engine installed via Wipaire STC SA1522GL or Texas Skyways STC SA09960SC in both landplane and seaplane configurations.
    Read More
  • Wing-X STOL Wing Extensions by ART

    Have your Wing-X STOL Wing Extensions installed with your Wipline 3000 or 3450 Floats!

    • 175 Lb increase in the useful load.
    • Cessna 185 is 3,525 GTOW Certified
    • Approved on Wheels, Skis, Amphibs and Straights

    Wipaire is an authorized distributor and installation center for Wing X STOL tip extensions for Cessna 180, 182, and 185. Visit www.wingxstol.com for all performance parameters and information on this great product. This modification is approved with various previously installed leading edge modifications as well as vortex generators.

    Click Here for Pricing for the 185

    Questions? E mail jasoner@wipaire.com







    Have your Wing-X STOL Wing Extensions installed with your Wipline 3000 or 3450 Floats!
    Read More

Modification Pricing

Modification Price
Hartzell Trailblazer 3-Blade Composite Propeller for the 185Learn More
3-blade composite Trailblazer constant-speed propeller, 82″ diameter. Applicable to
185 models with the IO-550-D engine installed via Wipaire STC SA1522GL or Texas Skyways STC
SA09960SC. (Kit: SA04053CH-003)
$19,900
IO-550 Engine Upgrade Propeller & KitLearn More
Propeller Options:
Hartzell Propeller (PHC-C3YF-1RF/F8468A-6R) and Spinner Assembly
(A-2295-1P)
$11,300*
Hartzell Trailblazer Propeller (HC-C3YF-1N/NG8301-3) and Spinner
Assembly (A-2295-1P)
$19,900**
McCauley Propeller / Short Hub (D3A34C401C/90DFA-10)
(Includes spinner assembly)
Call for Price
IO-550 Kit:
For Hartzell-equipped aircraft (SA1522GL-001) $4,730
For McCauley-equipped aircraft (SA1522GL-002) $4,730
IO-550 Kit Only Cessna 185
(Does not include governor)
Tachometer (exchange) and MP/FF gauges (exchange; core charge $1,200)
STC Only – No Kit or Engine (Paperwork only) $2,420
NOTE:Propeller Governor (with Core Exchange) $1,680
3 Blade Engine Mount required for 185 at an additional cost
*$300 discount will be applied when purchased with Wipaire’s IO-550 upgrade.
**$1,000 discount will be applied when purchased with Wipaire’s IO-550 upgrade.
Replacement STC/Prints $350.00 Per Set

Excluded is the Engine itself.

Wing-X STOL Kits – Drop ShippedLearn More
Wing X extension kits for 180,182, & 185 $5,295.00
UPS BLUE drop shipping in continental US $200.00
Additional leading edge modifications $200.00
Wing-X STOL Kits – Installed at Wipaire
Wing X kit $5,295.00
Shipping $ N/C
Labor (Typical 55 hours) @95.00/HR $5,225.00
Painted White (colors & custom stripes additional) $500

Note** Depending on modification of wing spars, additional reinforcement may be needed. Additional labor TBD.

Note** Sportsman STOL leading edge modifications are integrated into the ART Wing X-STOL kit and require no additional labor during installation. Bushton style cuff requires additional $570.00 of labor to fit leading edge modifications.

ALL SHIPPING COST WILL BE ASSUMED BY PURCHASER

Prices in US Dollars, FOB St. Paul, Minnesota, USA, and are subject to change without notice. Prices do not include taxes, duties or tariffs. They also may vary if custom work is required or requested.

Effective: February 1, 2017

Avionics for the Cessna 185

Cessna 185 Avionics

Wipaire’s Avionics division offers a full array of navigation, weather detection and communication technology. Wipaire offers avionics services at both our South St. Paul, MN headquarters and our Leesburg, Florida location. We are a certified Garmin dealer, as well as most other major brands. We have the experience and resources to transform your cockpit to glass. We can also repair any problems with your existing avionics system.

The Wipaire team will work with you to create the features you need to ensure a safe, smooth, enjoyable ride.

  • Sales & installation of new custom avionics suites.
  • Service for existing avionics.



Click Here to Learn More About Our Avionics Services

Interiors for the Cessna 185

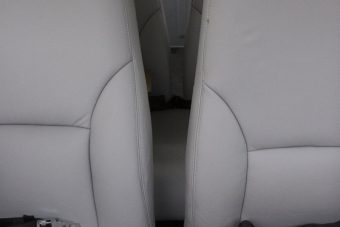

Cessna 185 Interior by Wipaire

If your interior is starting to show its age then why not upgrade!

Wipaire’s aircraft interiors facility is able to do anything from small repairs to complete interior renovations, we’ll work with you to formulate the interior that fits your needs.

  • Committed to quality
  • Professional grade craftsmanship
  • Save time! Interior installed concurrent with maintenance
  • Custom design service

Click Here to Learn More About Our Interiors Services

Maintenance for the Cessna 185

Maintenance Services by Wipaire

Wipaire has been providing aircraft maintenance and float installations for over 25 years. Wipaire is an FAA certified repair station.

We can complete any of your restoration or upgrade needs.  From annual inspections to wing tip extensions to vortex generators to engine upgrades, major to minor, we are here to help.

Additional Wipaire maintenance services:

  • On or off site borescope inspections, image capture capability for download if requested.
  • Full lead acid battery service.
  • Prop balancing service.
  • Weight and balance service, float plane and land plane.
  • Float removal, storage, inspection and repair.
  • Annual service
  • Pre buy inspections for buyer or seller.

Visit our maintenance page to learn more about our full range of services.

Refinishing for the Cessna 185

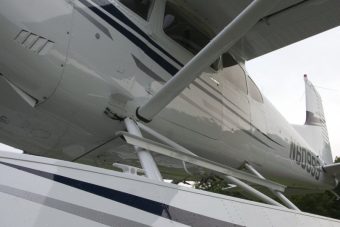

Cessna 185 Paint by Wipaire

If you can imagine it we can make it real. Paint is custom designed and matched to existing elements and can be as simple or exotic as you desire. Airbrushing art and custom decals are part of our everyday processes. Experience and intricate attention to detail are our foundation for creating the highest quality product.

  • We specialize in custom requests
  • Meticulous attention to detail
  • Committed to quality
  • Custom design service
  • Craftsmanship with extensive training

Click Here to Learn More About Our Refinishing Services
